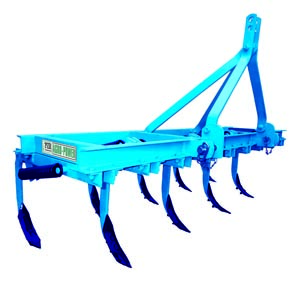

Heavy Duty Type Spring Loaded Tiller is more complex in design. It is distinguished by longer frame to facilitate wider spacing of tynes. Spring Loaded Tynes of this design have distinctive looks as the springs are anchored through twisted flats. Pipe supports on main frame are optional for reinforcing against bending strains.

Benefits :
• Suitable for stone and root obstructed soil.
• It is designed for toughest operations.
• Used for loosening and aerating soil to a 9”depth.
• Prepares seed beds quicky and economically.

Features :
• When one tyne strikes a hidden object, the others continue to work at the correct depth.
• Spring Loaded assemblies derive their strength from heavy-duty angles & flat which once fixed to immensely strong main channel frame cannot move or strain out of position.
• Spring with 10 mm wire provides extra load carrying strength.

	9 Tyne	11 Tyne	13 Tyne	15 Tyne
Power Required (HP)	40-45	50-55	60-65	70-75
Frame	65x10 mm (Angle)	65x10 mm (Angle)	65x10 mm (Angle)	65x10 mm (Angle)
Tynes	50x19 mm (Forged)	50x19 mm (Forged)	50x19 mm (Forged)	50x19 mm (Forged)
Anchor Pin	25 mm	25 mm	25 mm	25 mm
Length	2190 mm	2467 mm	3104 mm	3561 mm
Weight	240 Kg (Approx.)	287 Kg (Approx.)	334 Kg (Approx.)	395 Kg (Approx.)
