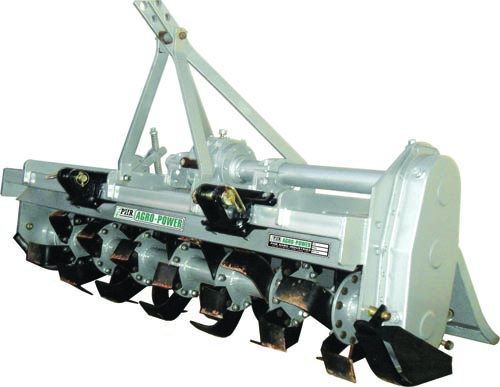

ROTARY TILLER SINGLE SPEED
Single Speed Gear Drive Rotary Tiller is more suitable for hard/sticky soils. Side gears are less prone to breakdowns in tough soil conditions.
Benefits :
• Suitable for dry as well as wet land cultivation.
• Suitable for light and medium soil conditions.
• Used for loosening and aerating soil up to 5-6” depth.
• Prepares seed beds quickly and economically.
Features :
• Single speed gear box compatible with 540 PTO RPM.
• Easy depth adjustment.
• Available in gear drive for better performance.
• Type of blade- L type boron Steel.
• Well shaped adjustable rear trailing board.
| APSS 1.25 | APSS 1.50 |
APSS 1.75 |
APSS 2.00 |
|
|---|---|---|---|---|
| Tractor Power (HP) | 35-40 |
40-45 |
45-50 |
50-60 |
| Overall Width | 155cm |
180cm |
205cm |
230cm |
| Tillage Width | 125cm |
150cm |
175cm |
200cm |
| No. of Blades | 30,54 (L&J) |
36,48,66 (L,C & J) |
42,54,78 (L,C & J) |
48,66,90 (L,C & J) |
| P.T.O Speed (r.p.m) | 540 |
540 |
540 |
540 |
| Rotor Speed (r.p.m) | 190/225 |
190/225 |
190/225 |
190/225 |
| Gear Box Overload protection | Shear Bolt |
Shear Bolt |
Shear Bolt |
Shear Bolt |
| Weight | 380 kg (Approx) |
410 kg (Approx) |
440 kg (Approx) |
470 kg (Approx) |
