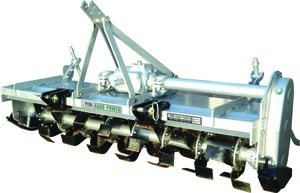

Multi Speed Gear Drive Rotary Tiller offers wider range of rotor speed ratios. Rotor speed can be varied (by simple adjustment) as per the tilth quality required and the soil condition available.

Benefits :
• Suitable for dry as well as wet land cultivation.
• Suitable for light and medium soil conditions.
• Used for loosening and aerating soil up to 5-6” depth.
• Prepares seed beds quickly and economically.

Features :
• Multi speed gear box compatible with 540/1000 PTO RPM.
• Easy depth adjustment.
• Available in gear drive for better performance.
• Type of blade –L type boron Steel.
• Well shaped adjustable rear trailing board.

	APMS 1.25	APMS 1.50	APMS 1.75	APMS 2.00
Tractor Power (HP)	35-40	40-45	45-50	50-60
Overall Width	155cm	180cm	205cm	230cm
Tillage Width	125cm	150cm	175cm	200cm
No. of Blades	30,54 (L&J)	36,48,66 (L,C & J)	42,54,78 (L,C & J)	48,66,90 (L,C & J)
Gear Box Overload Protection	Shear Bolt	Shear Bolt	Shear Bolt	Shear Bolt
Weight	410 kg (Approx)	440 kg (Approx)	470 kg (Approx)	500 kg (Approx)
